*Disclaimer: I am not responsible for any accidents or damaged goods! Do this at your own risk. I recommend practicing on broken or useless plugs before trying it on a necessary plug.
I have searched the internet high and low for a how-to like this, but only found vague descriptions of what to do. So here's a description, with pictures, of how to remove wires from Toyota's wiring harness plugs. Things you'll need: -Small screwdriver kit or something similar. I picked mine up as an optical repair kit for $1 at the dollar store. Hobby shops or jewelry stores would have the same thing to repair watches. -A Toyota wiring harness Out of the kit that pictured here, I used the smallest flathead screwdriver. ![]() I chose to use a cruise control stalk for this how-to. It's a simple plug, nice and easy to work with. You start be removing the lock on the plug, pictured here. ![]() There's a small space to slip the flathead screwdriver into so you can pry the lock up and out. ![]() ![]() ![]() After that lock is removed, look inside the end of the plug. You'll see a "finger" pressing down on the end of each wire. Look in the two empty slots on the right of this picture, and you'll see the "fingers." ![]() To remove the wire, these fingers need to be pried up. Slide the tiny screwdriver in the slot, and keep it against the pin so you can get underneath the finger. Then, once you feel the screwdriver slip underneath the finger, simply pry up and pull the wire out. ![]() ![]() ![]() ![]() To put the wire back into the plug, it's as easy as sliding it into the slot. It'll lock back into place. When you are finished, place the lock back into the top of the plug and test your wires to make sure none of them fall out for any reason. Once you've practiced and done it a couple of times, you get the feel for it and it becomes very very simple. -------------------- "Employ your time in improving yourself by other men's writings, so that you shall gain easily what others labored hard for." -Socrates. Even Socrates told us to use the search button!
![]() 2006 Aston Martin V8 Vantage. 1998 Celica GT- BEAMS Swapped. 2022 4Runner TRD Off Road Prenium. 2021 GMC Sierra AT4. |
![]() |
![]() |
|
![]() Moderator ![]() ![]() ![]() ![]() ![]() Joined Jun 29, '08 From Denver Currently Offline Reputation: 59 (100%) ![]() |
A little bit of added information. Often when reading about how to repin a harness, you'll see specific pin numbers mentioned- for instance, someone will say to put a wire in pin 14. You may not notice them at first, but each plug has small numbers under each slot that tells which pin it is.

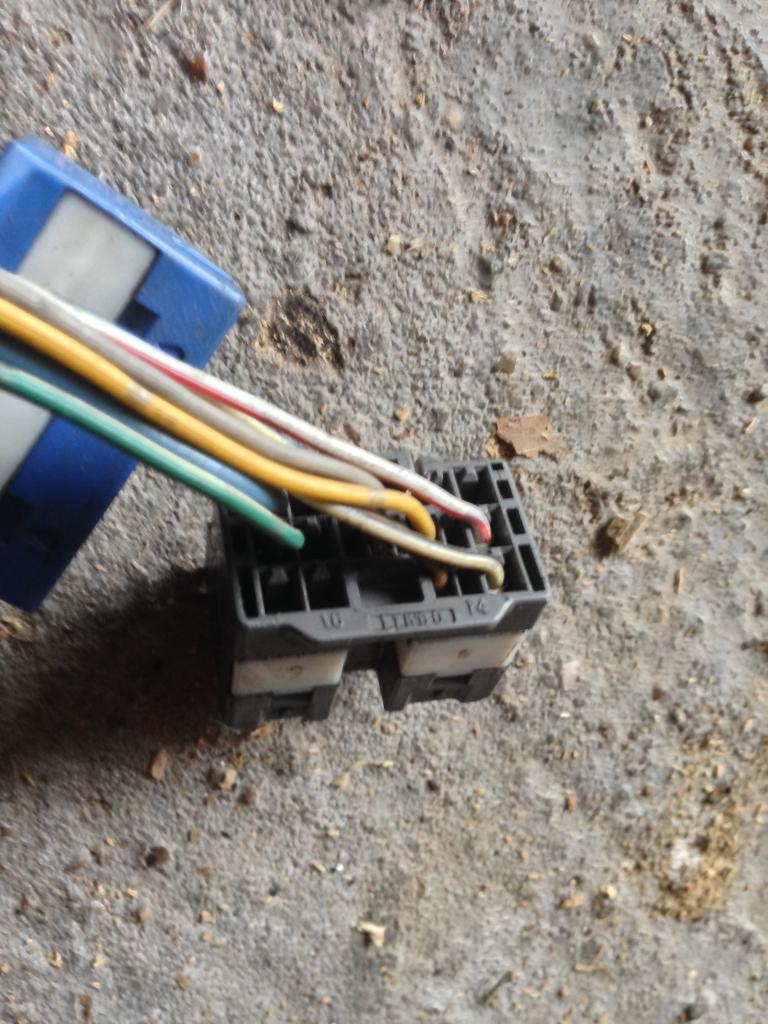

Shot with a potato, but here you can clearly see pin 14 and pin 16 marked. ![]() Not every single pin is marked, often due to space. Some of the numbers are hidden and difficult to find, but once you see how they are marked, you shouldn't have too much of an issue finding which pin you need. -------------------- "Employ your time in improving yourself by other men's writings, so that you shall gain easily what others labored hard for." -Socrates. Even Socrates told us to use the search button!
