 my 5SFTE turbo project, 300+whp PG 23!!!!!!! |
  |
 Apr 8, 2009 - 7:56 PM
|

|
 Enthusiast  Joined Aug 31, '02 From Philadelphia, PA Currently Offline Reputation: 8 (100%)  |
damn.
what solution do you fill the parts washer with? any time i used one, it was always some oily stuff? sorry, dumb question, i know. -------------------- 15PSI - 30MPG - Megasquirt Tuned
|
|
Apr 8, 2009 - 8:06 PM
|
|
|
Enthusiast Joined Jan 18, '07 From Bergen county NJ Currently Offline Reputation: 24 (100%) |
that part washer is amazing manny and jenn....everything is looking awesome!!!!!!!!!!
-------------------- |
|
Apr 9, 2009 - 12:39 PM
|
|
 Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
QUOTE (lagos @ Apr 8, 2009 - 7:56 PM)  damn. what solution do you fill the parts washer with? any time i used one, it was always some oily stuff? sorry, dumb question, i know. its a mix of "gunk" brand heavy duty parts washer solution, (2 gallons) and ~10gallons of kerosene. thanks shannon! head is on, i also did the valve seals while the head was off, (it helps that dustin had them laying around..lol) and as a side note ...a tranny drain/fill bolt fits perfectly in the hole in the head where the egr normally bolts on.  pics later. -------------------- Former Team 5SFTE pro member ;)
 13.6@108MPH, 5SFTE Powered |
|
Apr 9, 2009 - 4:51 PM
|
|
 Enthusiast Joined Mar 8, '04 From Newport, RI Currently Offline Reputation: 63 (99%) |
Nice !
-------------------- |
|
Apr 9, 2009 - 5:52 PM
|
|
 Enthusiast Joined Jan 29, '07 From Hoyt Lakes, MN Currently Offline Reputation: 11 (100%) |
What about the port in the intake manifold? Are you just going to fab up a plate to block that port?
-------------------- 98 Celica gt red- totaled deer
94 Celica st black DD (bad weather beater)- totaled deer 95 Celica gt silver- chassis sold 88 Celica All-Trac (Burned to a crisp) 94 Celica gt white (sold) In need of a rust free chassis!!!! |
|
Apr 9, 2009 - 5:54 PM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
QUOTE (bccentaur3 @ Apr 9, 2009 - 5:52 PM) What about the port in the intake manifold? Are you just going to fab up a plate to block that port? yup.
-------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 9, 2009 - 5:55 PM
|
|
|
Enthusiast Joined Jan 29, '07 From Hoyt Lakes, MN Currently Offline Reputation: 11 (100%) |
Nice Manny!!
-------------------- 98 Celica gt red- totaled deer
94 Celica st black DD (bad weather beater)- totaled deer 95 Celica gt silver- chassis sold 88 Celica All-Trac (Burned to a crisp) 94 Celica gt white (sold) In need of a rust free chassis!!!! |
|
Apr 10, 2009 - 4:37 PM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
pics from yesterday
  here is what i was talking about with the EGR stuff. the tranny drain/fill bolt  close up  the union bolt that threads into the head
-------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 11, 2009 - 11:33 AM
|
|
 Enthusiast Joined Jun 10, '08 From Virginia beach Currently Offline Reputation: 8 (100%) |
lookin really nice
-------------------- |
|
Apr 12, 2009 - 4:47 PM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
installed the oil and water pumps this morning, and got the cams back in, pics later.

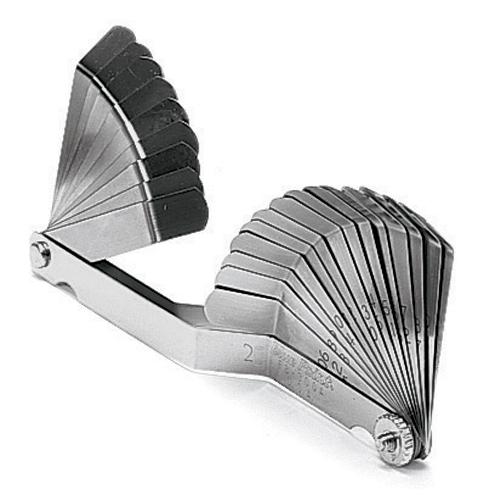

a tip for those installing cams, with the motor in the car. buy a set of feeler gauges with a angle on them, like this:  it makes it much easier to check the shim clearance on the exhaust cam. i had a few shims that were out of spec, because i didnt properly check them when it was installed in the car. with the angle of the motor, and the angle you have to insert the feeler gauge at, if your not carefull to be sure the feeler gauge is flat against the shim, you can easily get a false reading, that makes you think the shim is within spec, when in fact is can be still too small. -------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 13, 2009 - 5:52 AM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
oil and water pump, cams and oil pan installed.
getting closer!!
-------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 13, 2009 - 6:34 AM
|
|
|
Enthusiast Joined Feb 26, '07 From Boston, MA Currently Offline Reputation: 1 (100%) |
Break in period or will you be going straight to boost?
--------------------  |
|
Apr 13, 2009 - 7:54 AM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
QUOTE (jcaron9gt4 @ Apr 13, 2009 - 6:34 AM) Break in period or will you be going straight to boost? oh no, justin, it definetly needs a break in period, all new main bearings, and the need to seat the new rings require it. ill be turning the boost controller all the way down, and going real easy on it for a couple thousand miles. -------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 14, 2009 - 7:43 AM
|
|
|
Enthusiast Joined Dec 4, '08 From Minneapolis Currently Offline Reputation: 4 (100%) |
hey Manny, would a 38mm wastegate block off plate fit to block the port in the intake manifold?
|
|
Apr 14, 2009 - 7:52 AM
|
|
 Enthusiast Joined May 22, '03 From NOVA Currently Offline Reputation: 16 (100%) |
QUOTE (presure2 @ Apr 13, 2009 - 8:54 AM) QUOTE (jcaron9gt4 @ Apr 13, 2009 - 6:34 AM) Break in period or will you be going straight to boost? oh no, justin, it definetly needs a break in period, all new main bearings, and the need to seat the new rings require it. ill be turning the boost controller all the way down, and going real easy on it for a couple thousand miles. Isn't there a debate MR2OC or other about this. Where some builders break in under full boost and some baby the hell outta it |
|
Apr 14, 2009 - 8:56 AM
|
|
 Enthusiast Joined Mar 31, '04 From Summerville, SC Currently Offline Reputation: 5 (100%) |
Nice work Manny. Are you guys coming down to the Dragon?
Looks like a Harbor Freight parts washer, am I right? We have one  -Doc -------------------- -Dr Tweak, 6GC's resident engine swap wiring expert extraordinaire Click here to see my swaps drtweak@phoenixtuning.com |
|
Apr 14, 2009 - 9:30 AM
|
|
|
Enthusiast Joined Dec 8, '03 From Lancaster CA Currently Offline Reputation: 6 (100%) |
good start. id make a point about the fake Walboros out on Ebay too. make sure you are getting a genuine Walboro. because they look identical.
-------------------- 2001 Celica GT-S Turbo
1997 Supra TT 6speed 1997 Celica 3MZ/1MZ swap 1990 Celica All-Trac |
|
Apr 14, 2009 - 10:12 AM
|
|
 Enthusiast Joined Mar 29, '07 From Philly Currently Offline Reputation: 11 (100%) |
looks good manny...as for the break in period...i wouldnt say a couple thousand...i think after a few hundreed or more you can start to turn the boost back up and get on it a little more...by 800-1000 miles everything should be pretty sound. great work so far though...i cant wait to see this thing in person
--------------------  I"M NOT A TOYOTA FAN, IM A FANATIC 1984 accord hatch 5 speed (T-Belt)-Junkyard 1991 VDUB jetta wolfsburg Ed. 5 speed (clutch)-junkyard 1988 Dodge Aries K (sold) 1969 Chevy El camino - Traded for celica 1991 Dodge Daytona-Traded for Celica 1988 Chevy Camaro-Work in Progress 1989 Ford Mustang LX 5.0 - For Sale 1995 Toyota Celica-Work in Progress |
|
Apr 14, 2009 - 12:23 PM
|
|
|
Moderator Joined Oct 1, '02 From fall river, ma Currently Offline Reputation: 13 (100%) |
QUOTE (Red_T_swiftcam @ Apr 14, 2009 - 7:43 AM) hey Manny, would a 38mm wastegate block off plate fit to block the port in the intake manifold? maybe, idk. yea, dan, some guys say to smash it hard from the get go, others say to baby it awhile. naa, tweak, no dragon trip for us, especially with the baby. yup, harbor frright had the parts washer on sale, it was a great deal for 80$. QUOTE Smaay Posted Today, 09:30 AM good start. id make a point about the fake Walboros out on Ebay too. make sure you are getting a genuine Walboro. because they look identical huh? lol -------------------- Former Team 5SFTE pro member ;)
13.6@108MPH, 5SFTE Powered |
|
Apr 14, 2009 - 12:39 PM
|
|
|
Enthusiast Joined Aug 31, '02 From Philadelphia, PA Currently Offline Reputation: 8 (100%) |
QUOTE (playr158 @ Apr 14, 2009 - 8:52 AM) QUOTE (presure2 @ Apr 13, 2009 - 8:54 AM) QUOTE (jcaron9gt4 @ Apr 13, 2009 - 6:34 AM) Break in period or will you be going straight to boost? oh no, justin, it definetly needs a break in period, all new main bearings, and the need to seat the new rings require it. ill be turning the boost controller all the way down, and going real easy on it for a couple thousand miles. Isn't there a debate MR2OC or other about this. Where some builders break in under full boost and some baby the hell outta it There are a lot of really smart people on mr2oc, and a lot of really dumb ones.  I think the best rule to follow is the same guide lines the manufacture gives you when you buy a brand new car. Take it easy, avoid highways, and dont maintain a constant speed for an extended period of time for the first 1000 miles. -------------------- 15PSI - 30MPG - Megasquirt Tuned
|
|
